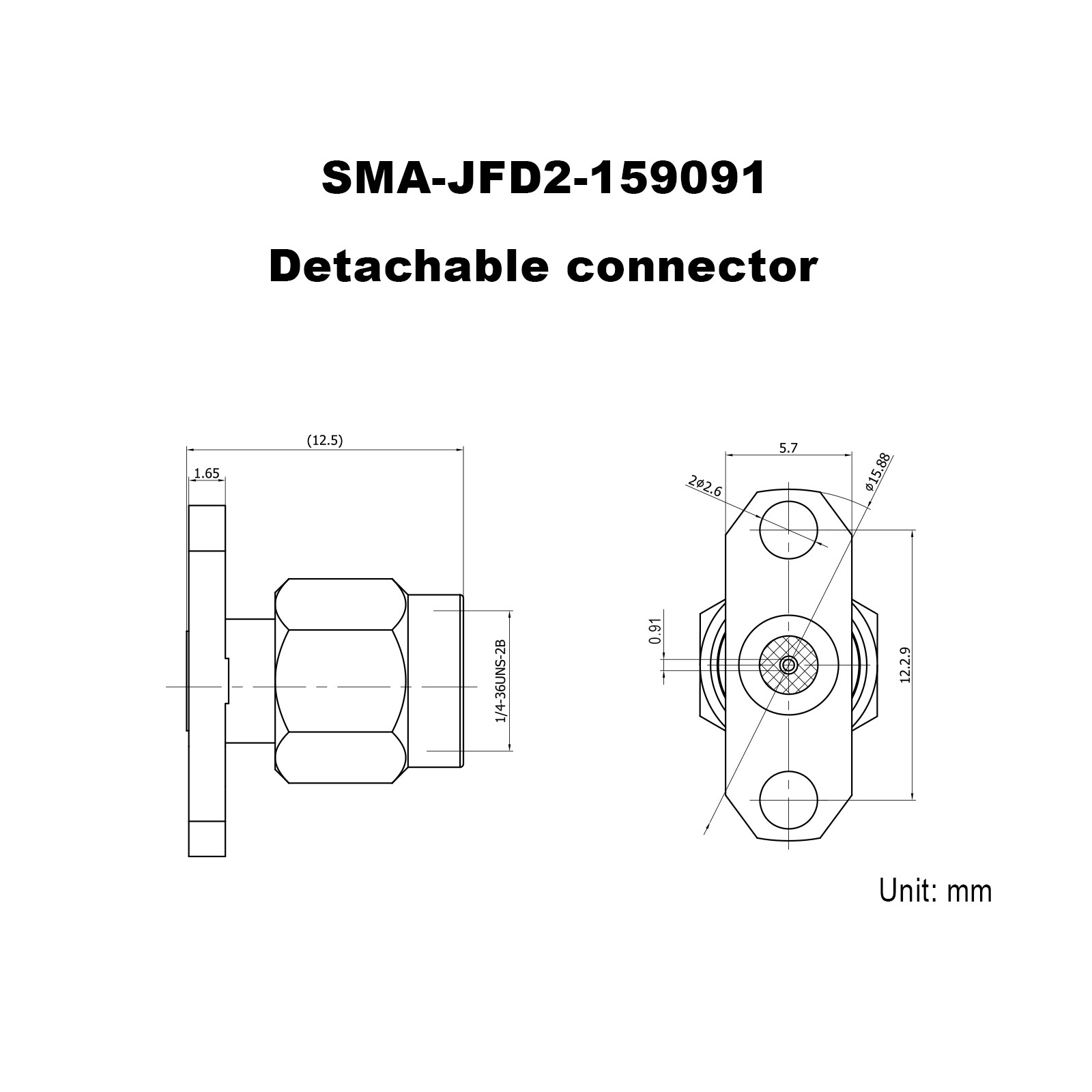

SMA-JFD2-159091
- Product Item : SMA-JFD2-159091
- Category： SMA
- BODY : Brass（Gold plated）/ Stainless steel
- FREQUENCY : DC TO 27 GHz
- VSWR : ≤1.25
- CONTACT : Beryllium copper

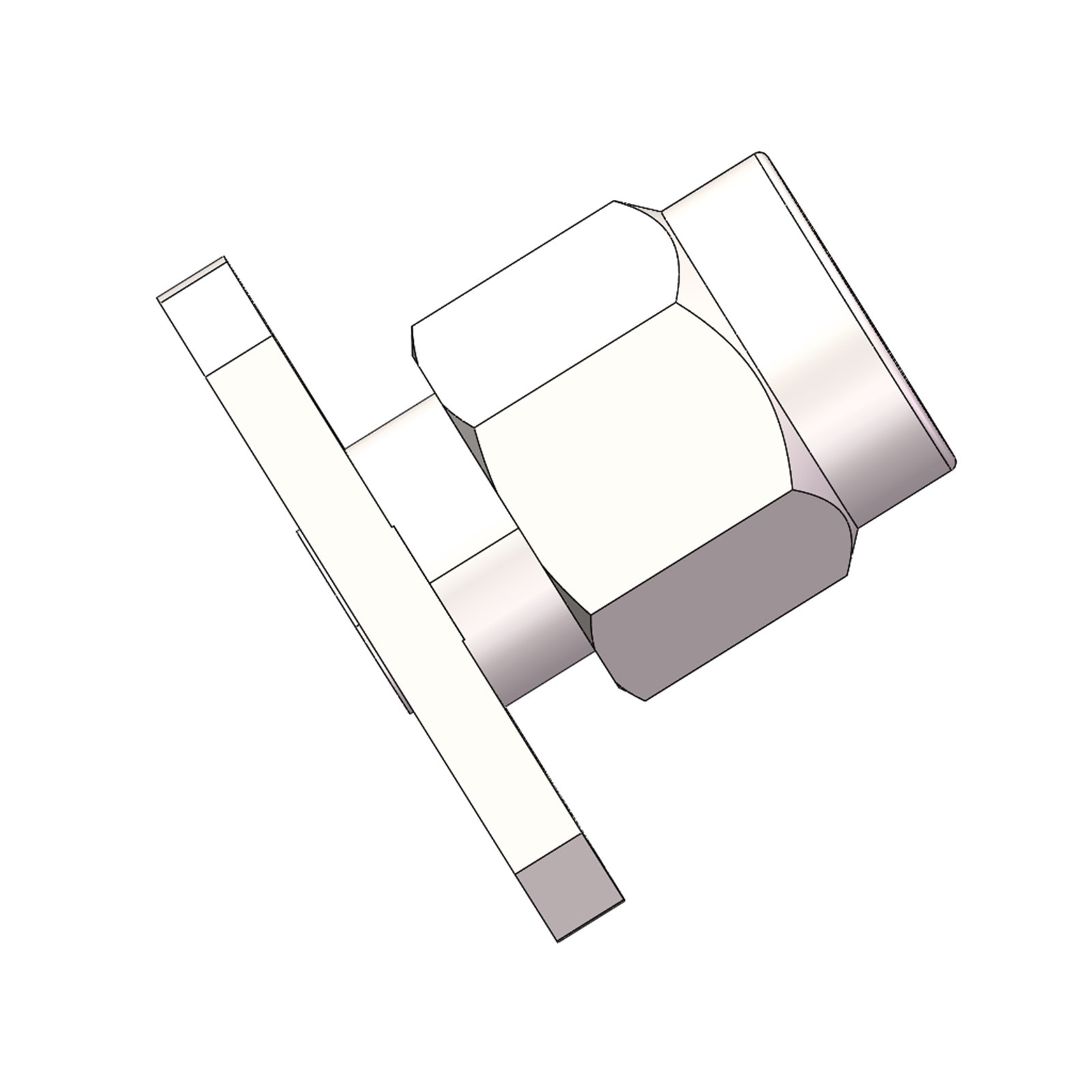

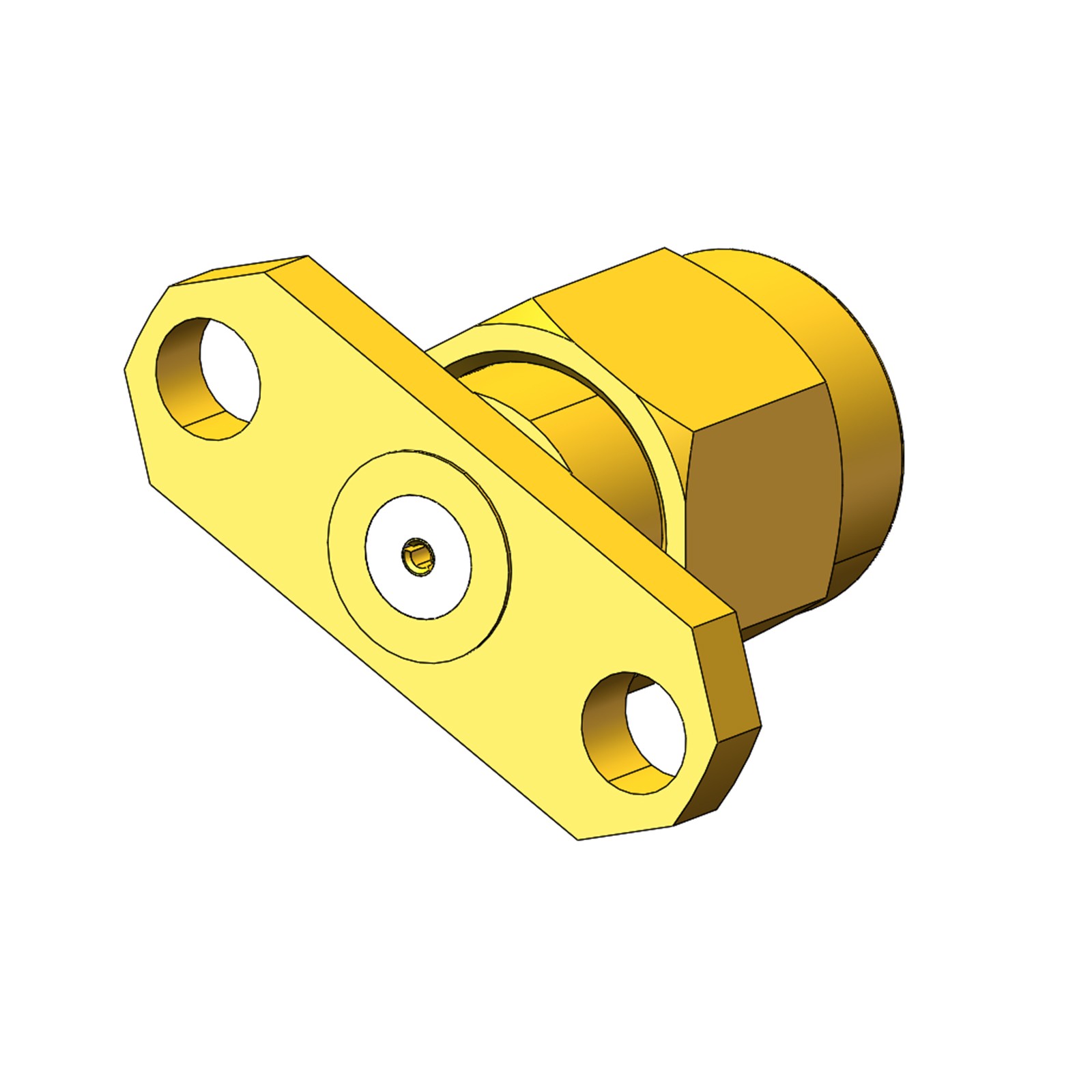

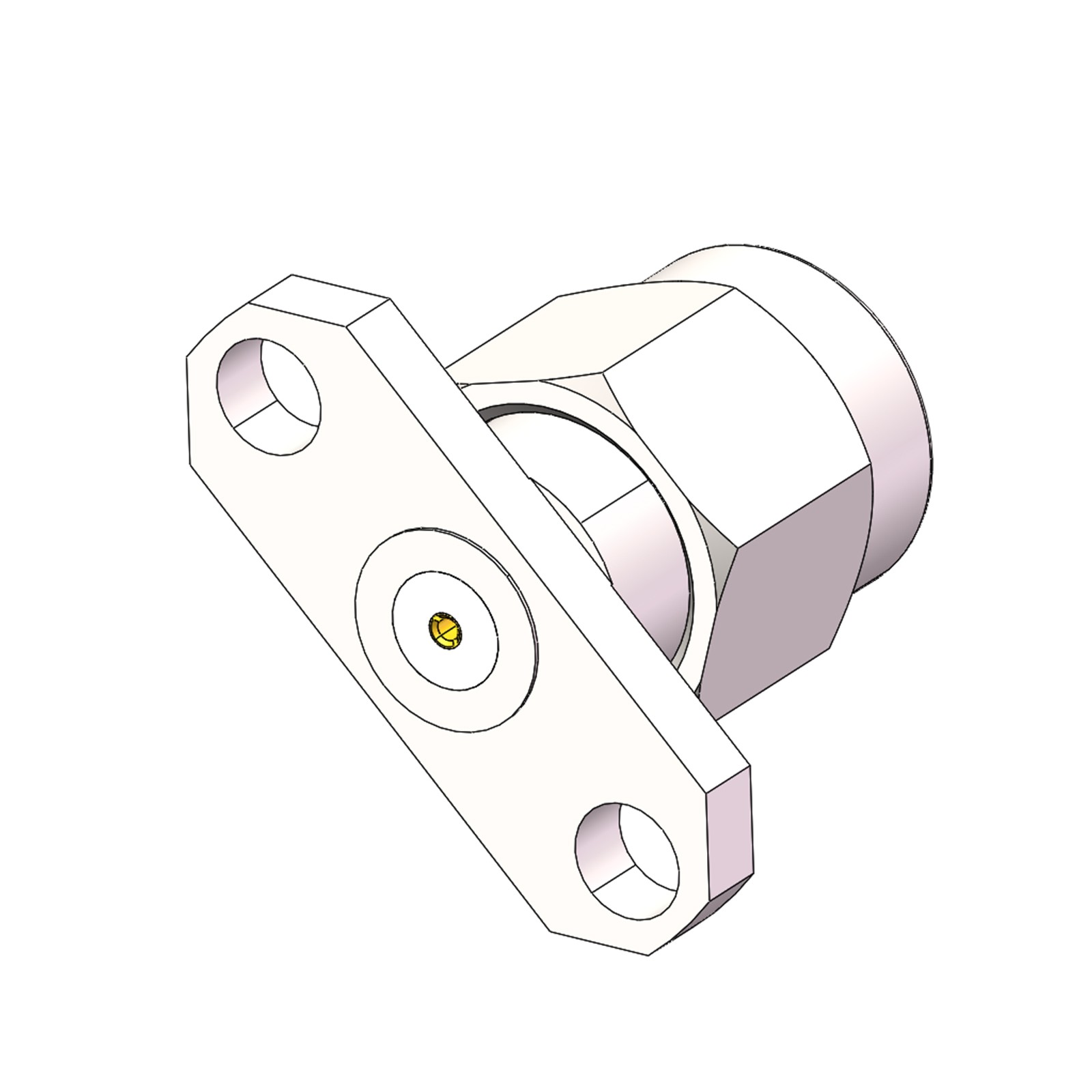

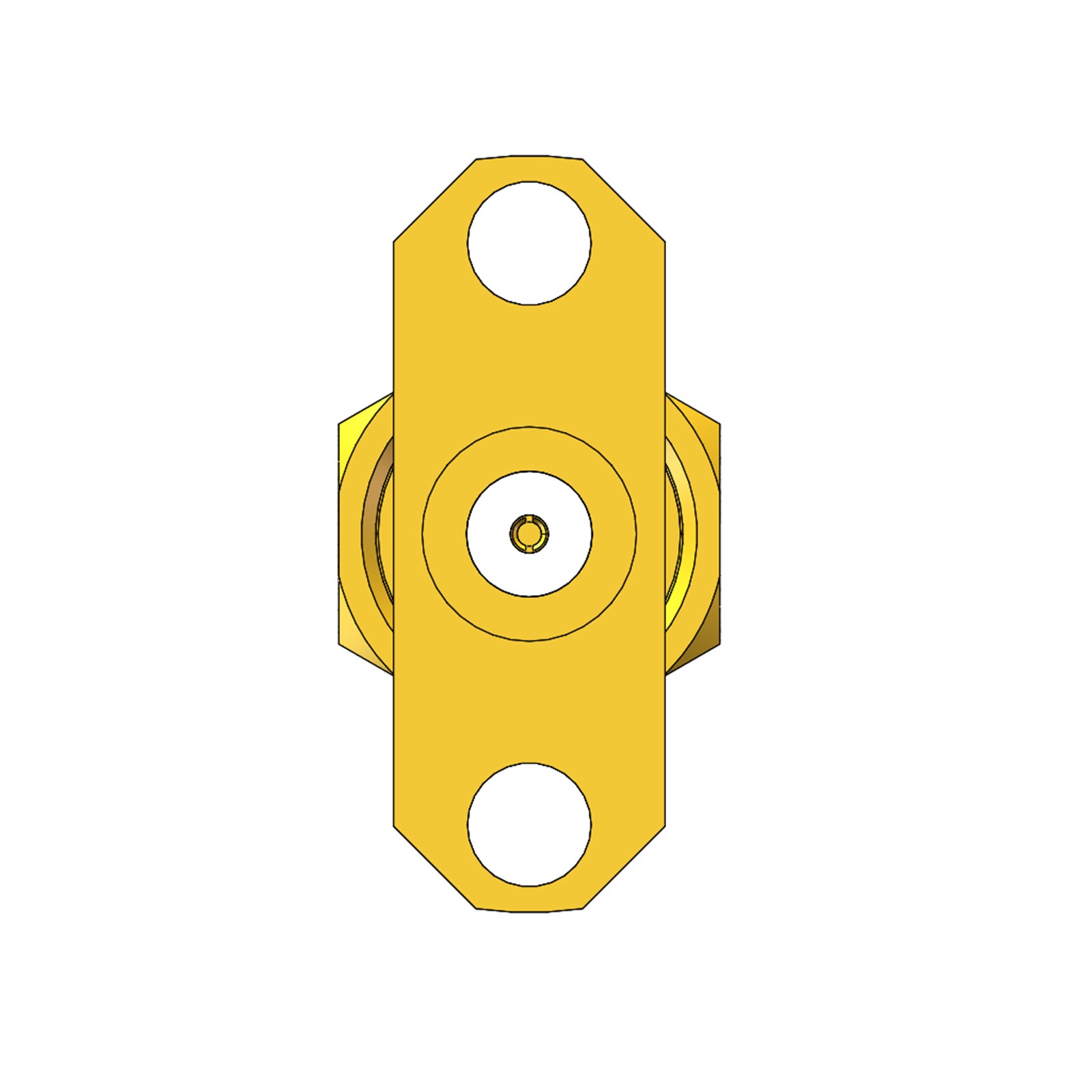

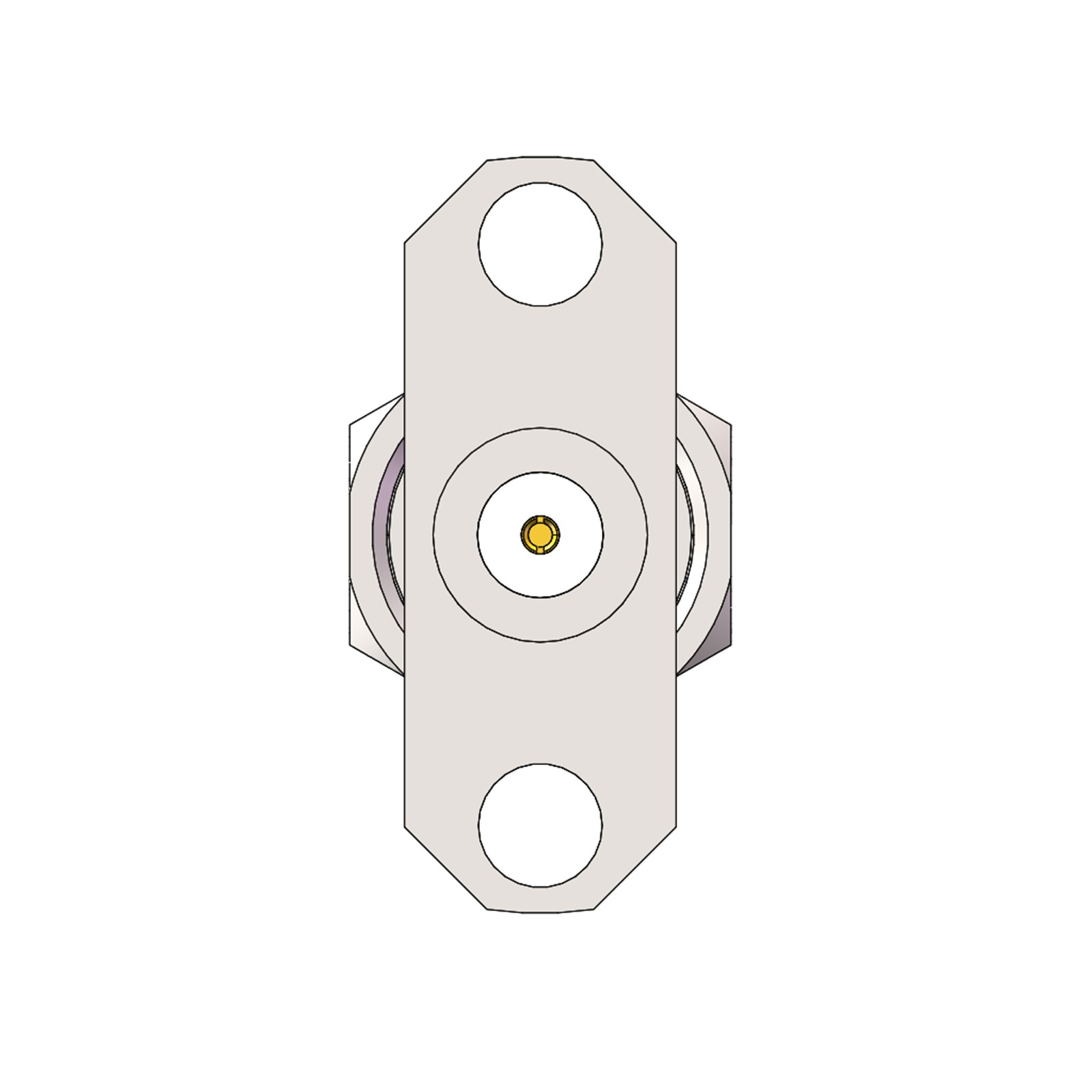

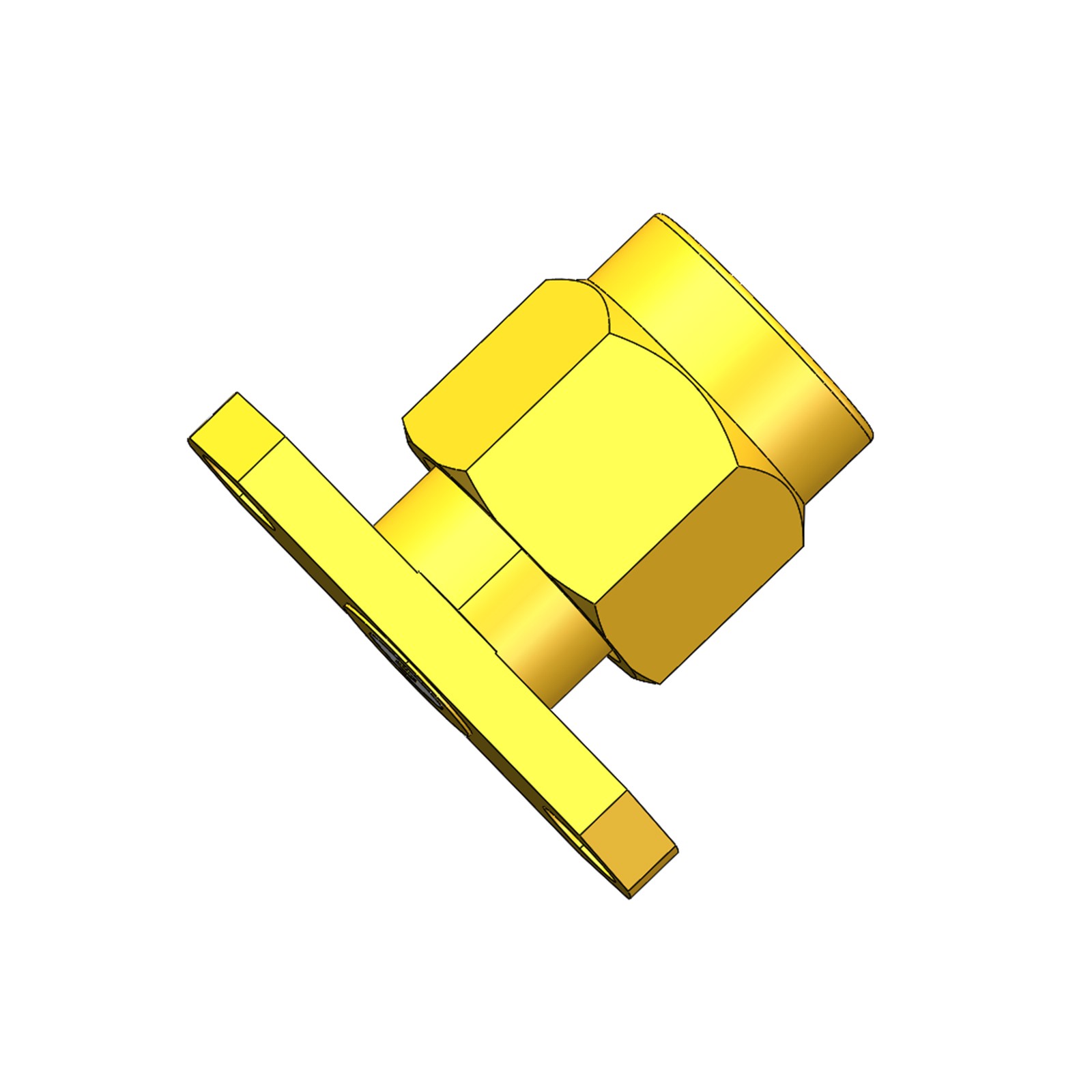

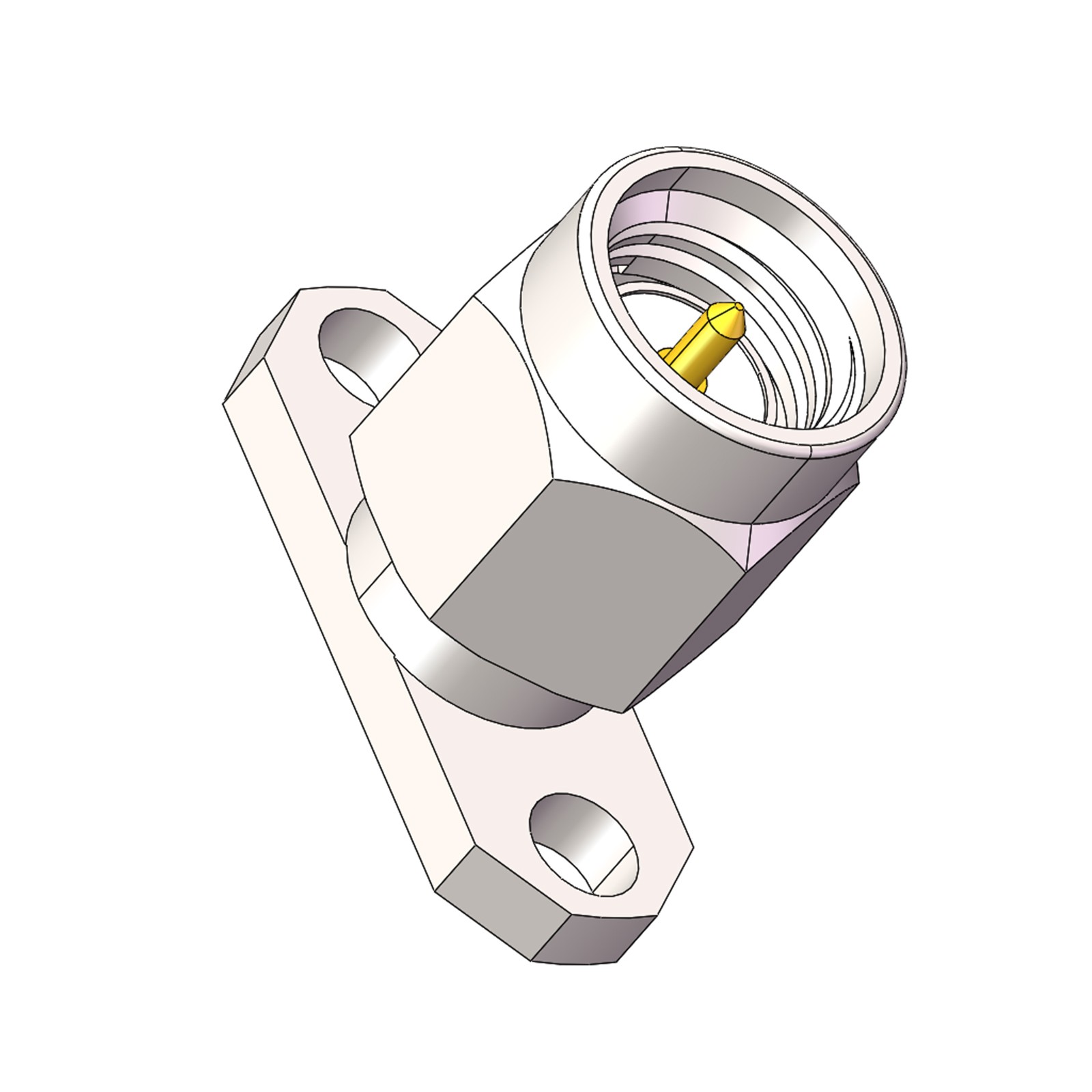

SMA female RF connector , detachable connector , Brass（gold plated）/ Stainless steel
- BODY:Brass（Gold plated）/ Stainless steel
- CONTACT:BERYLLIUM COPPER
- INSULATOR:PTFE
- IMPEDANCE:50 OHMS
- FREQUENCY:DC TO 27 GHz
- VSWR:≤1.25
- Temperature range:-55~165℃
-
-
-
-
