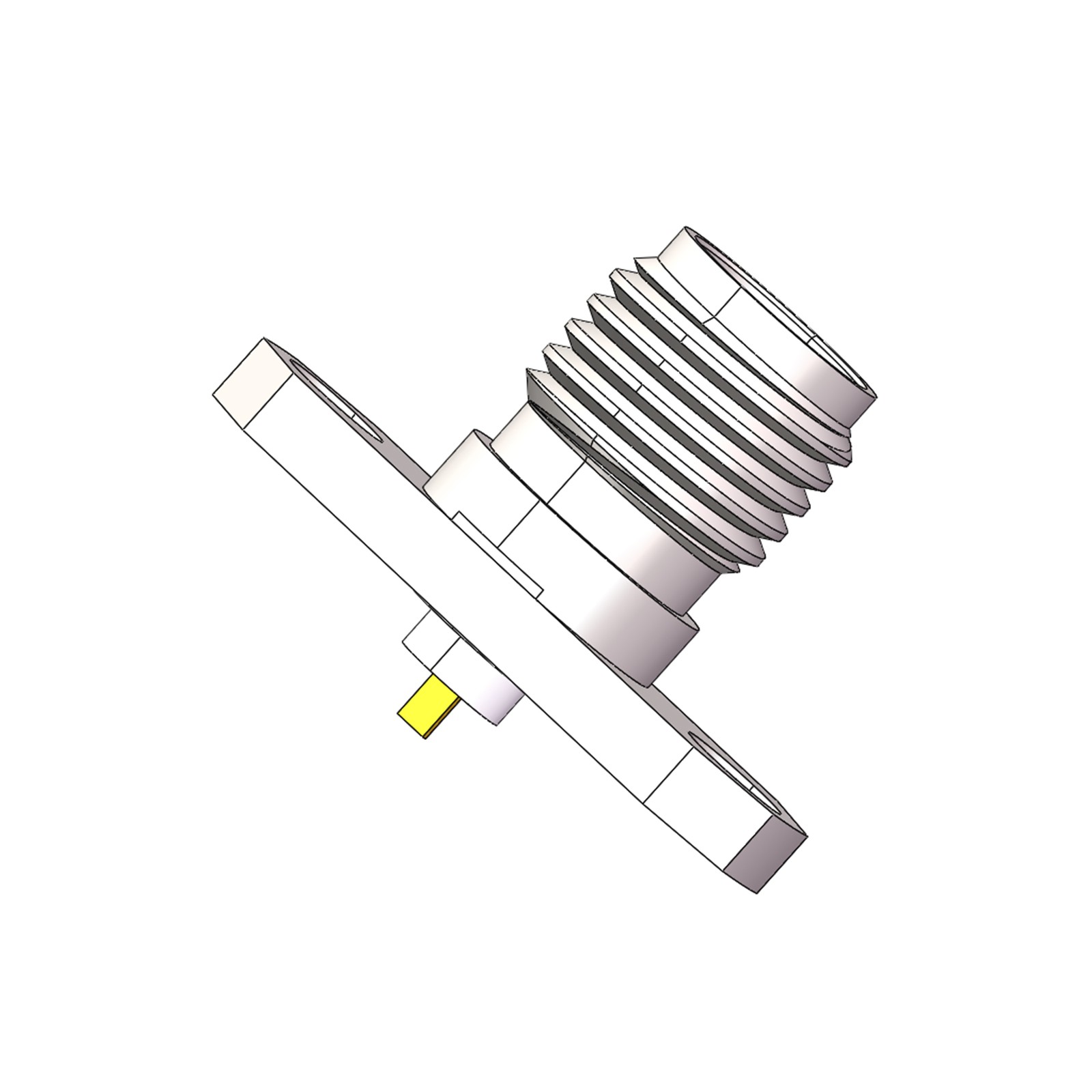

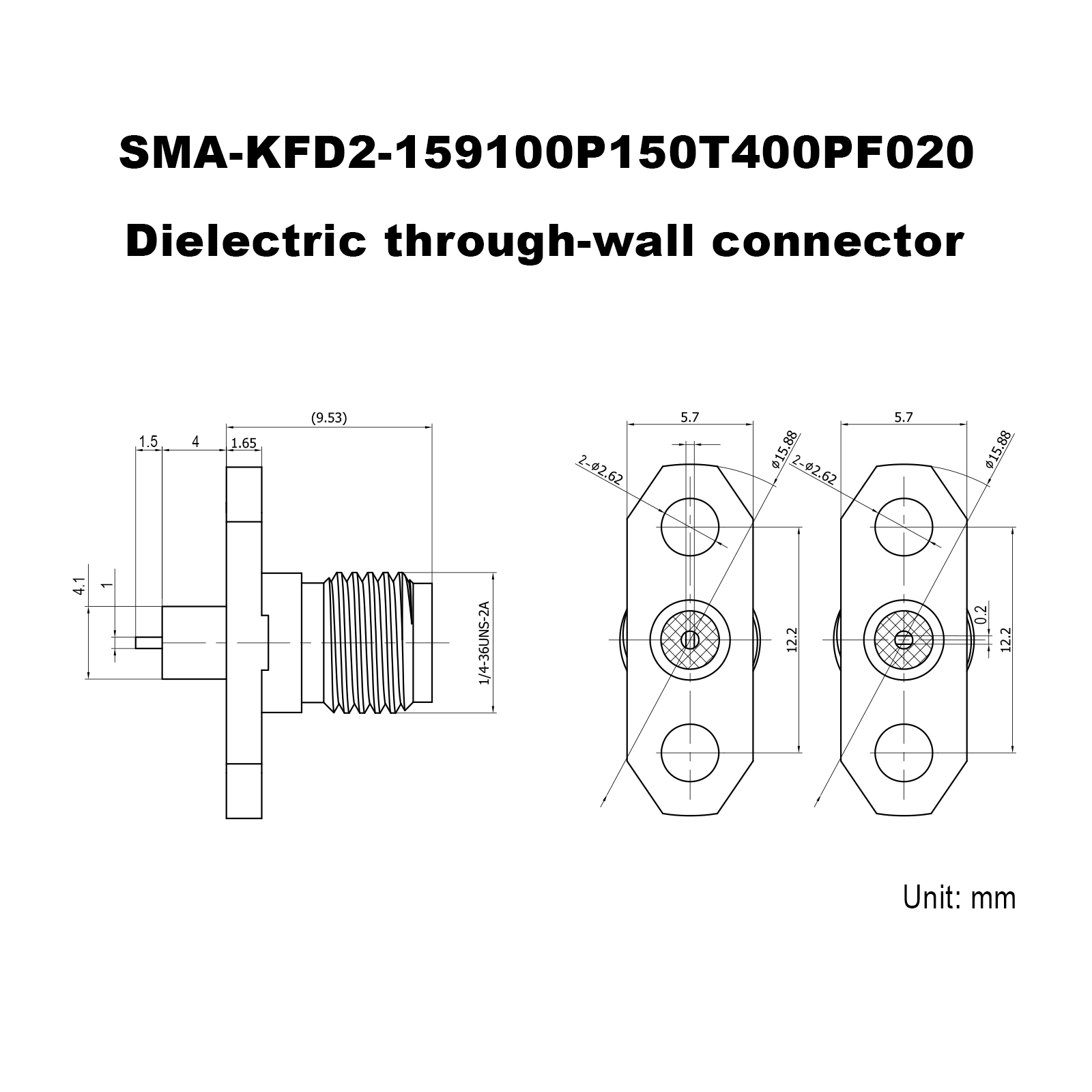

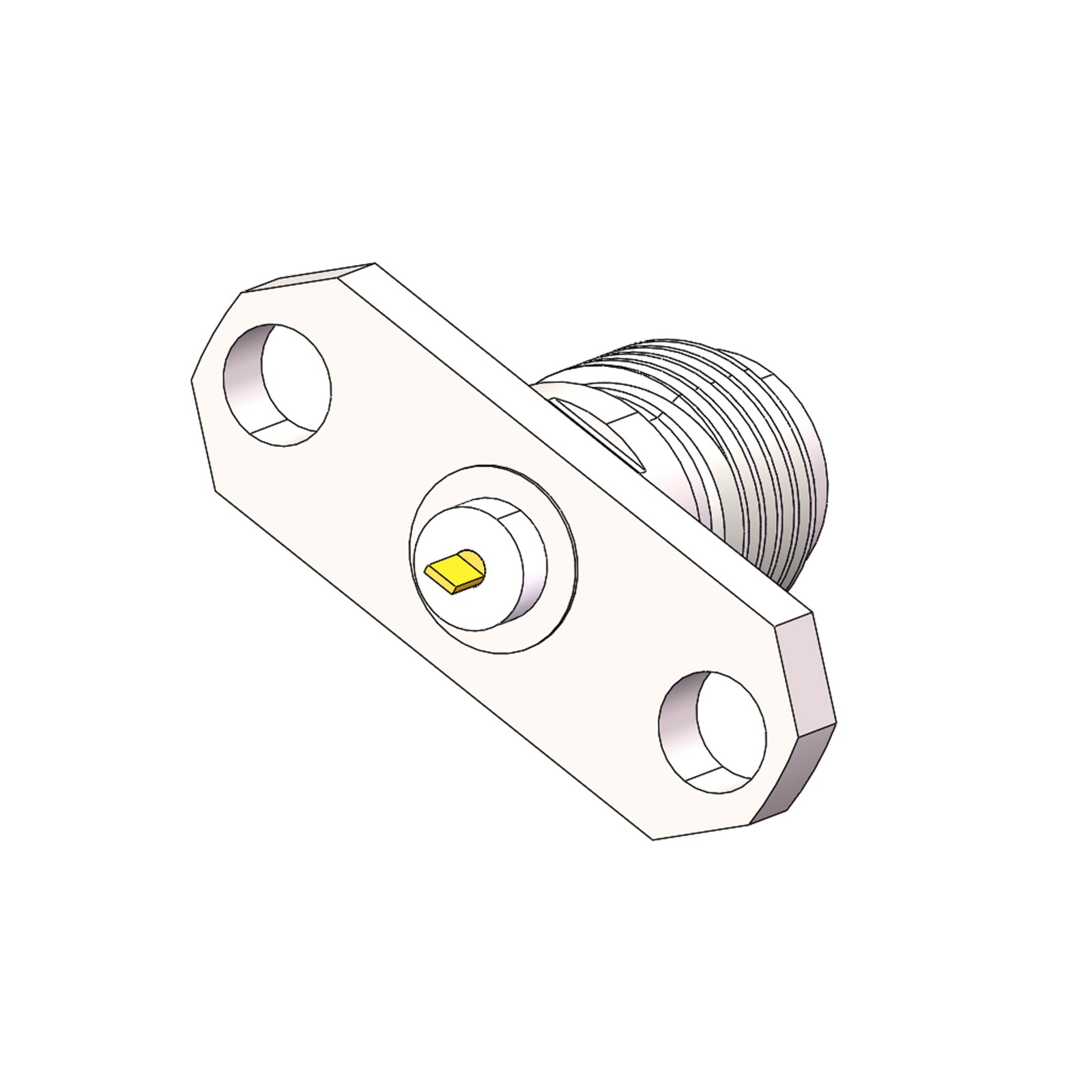

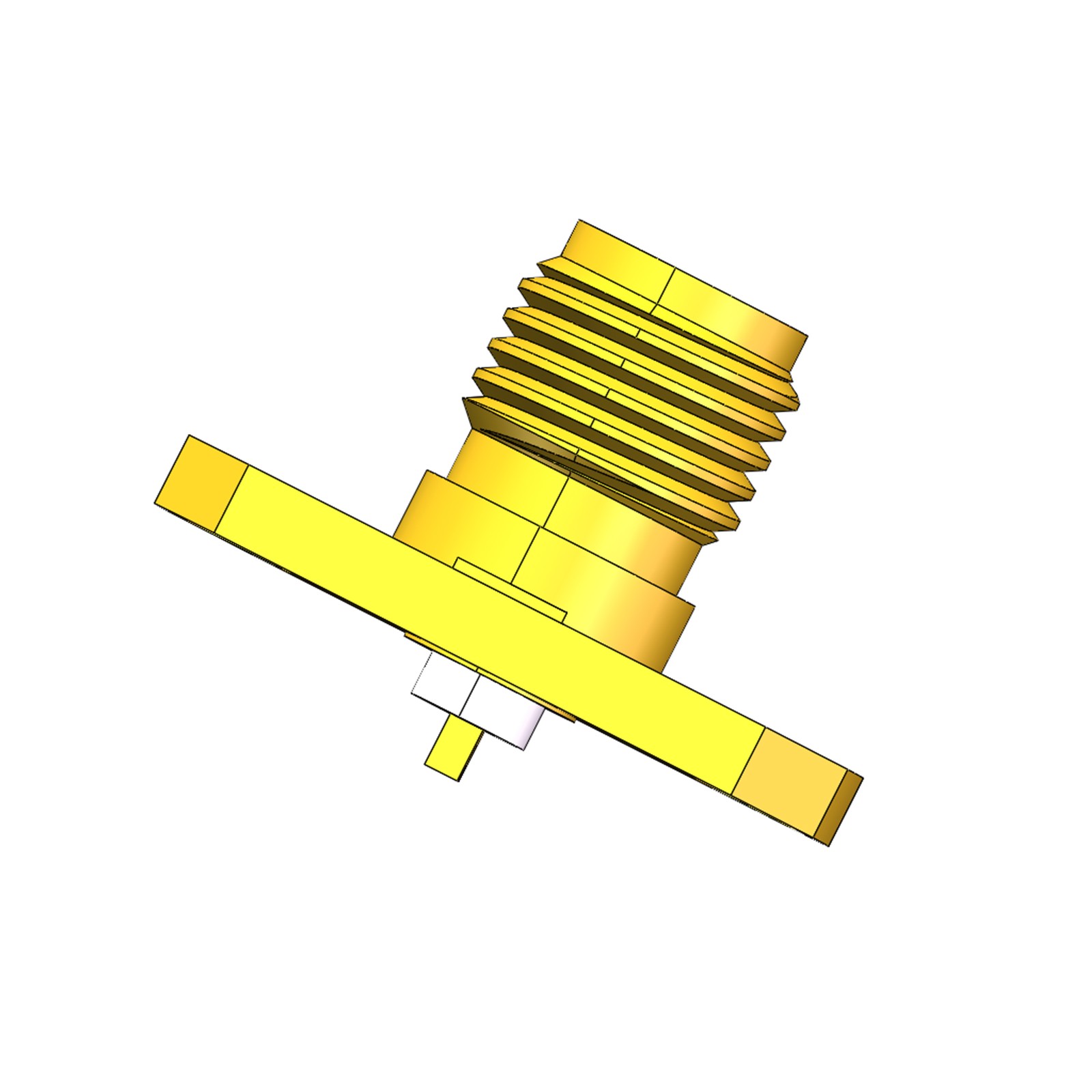

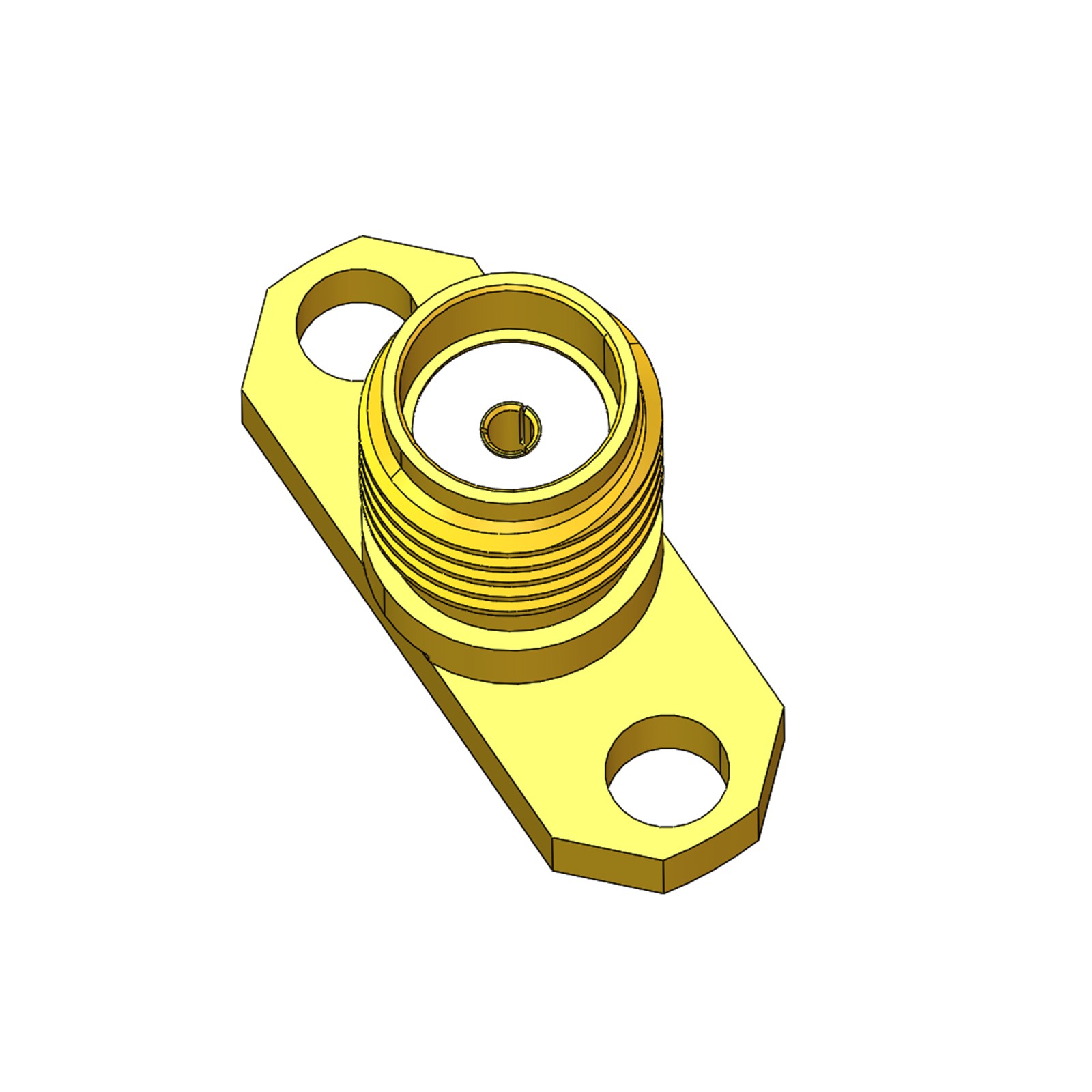

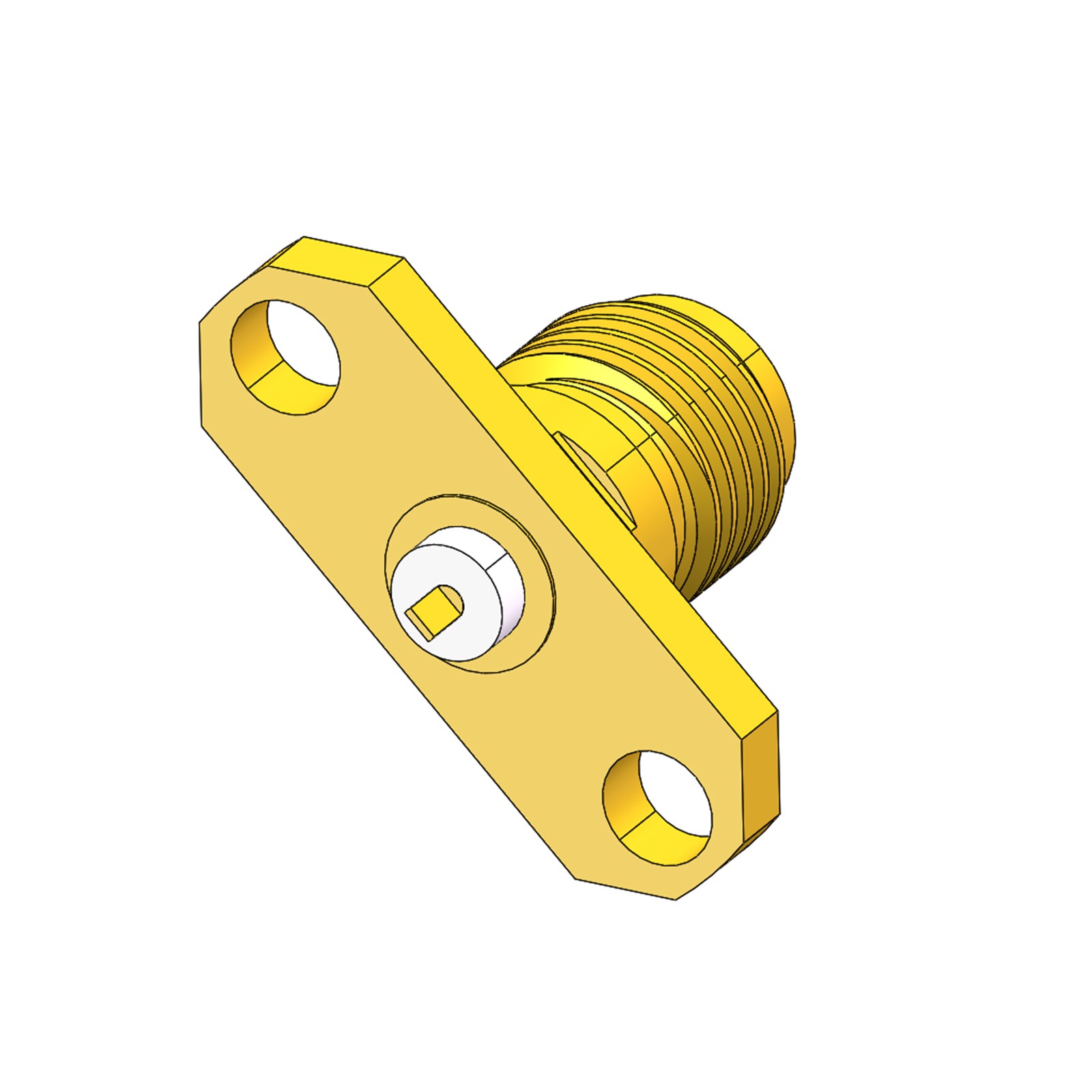

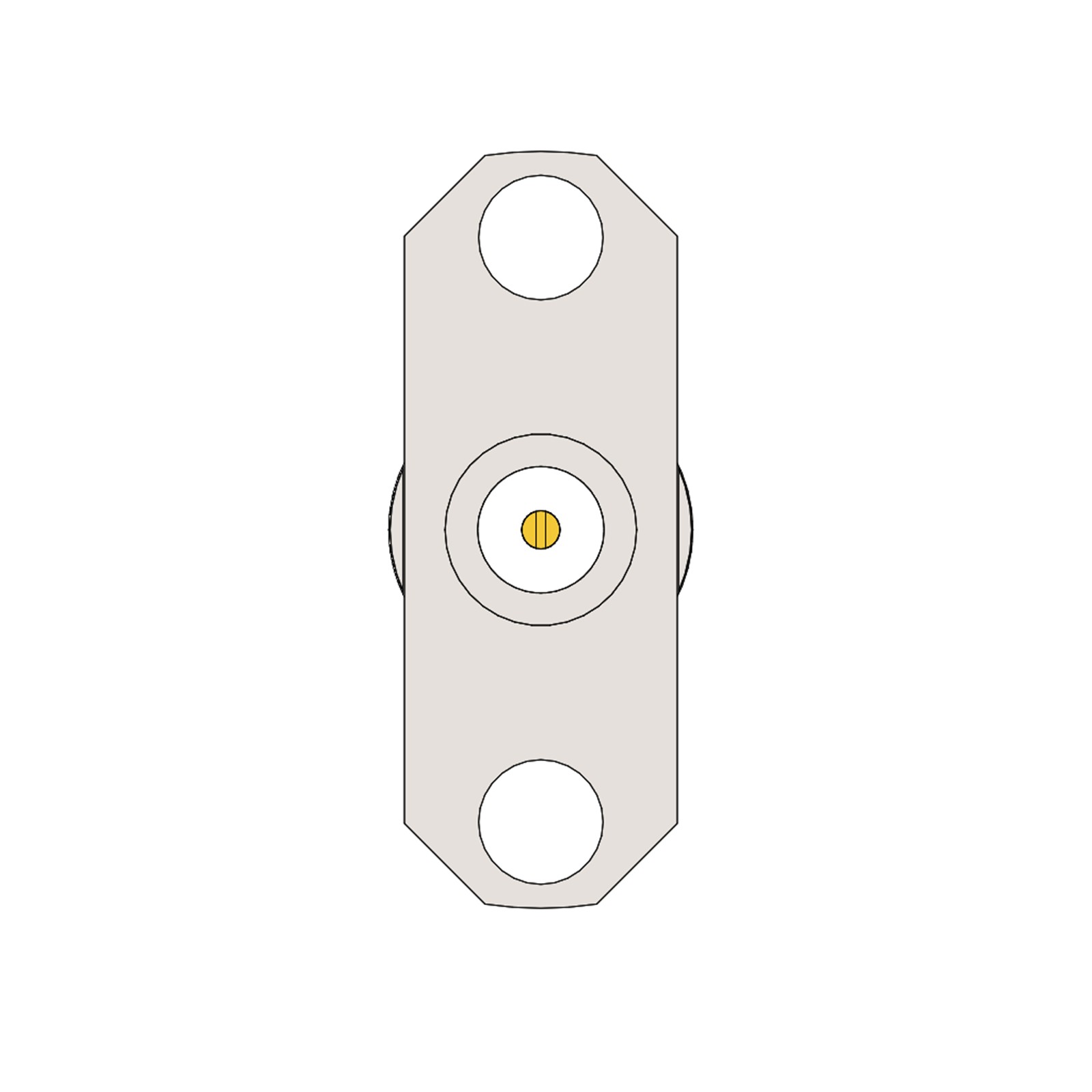

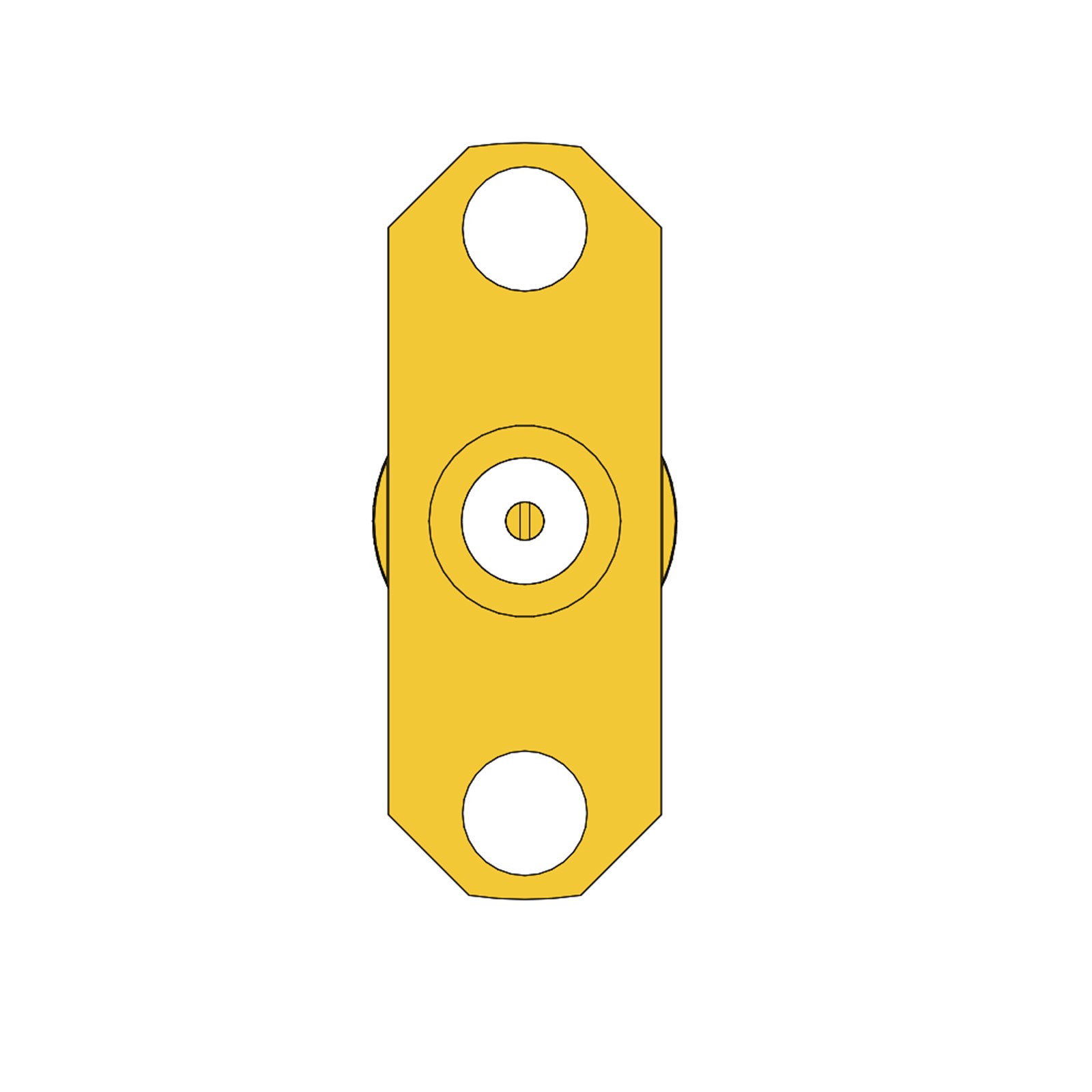

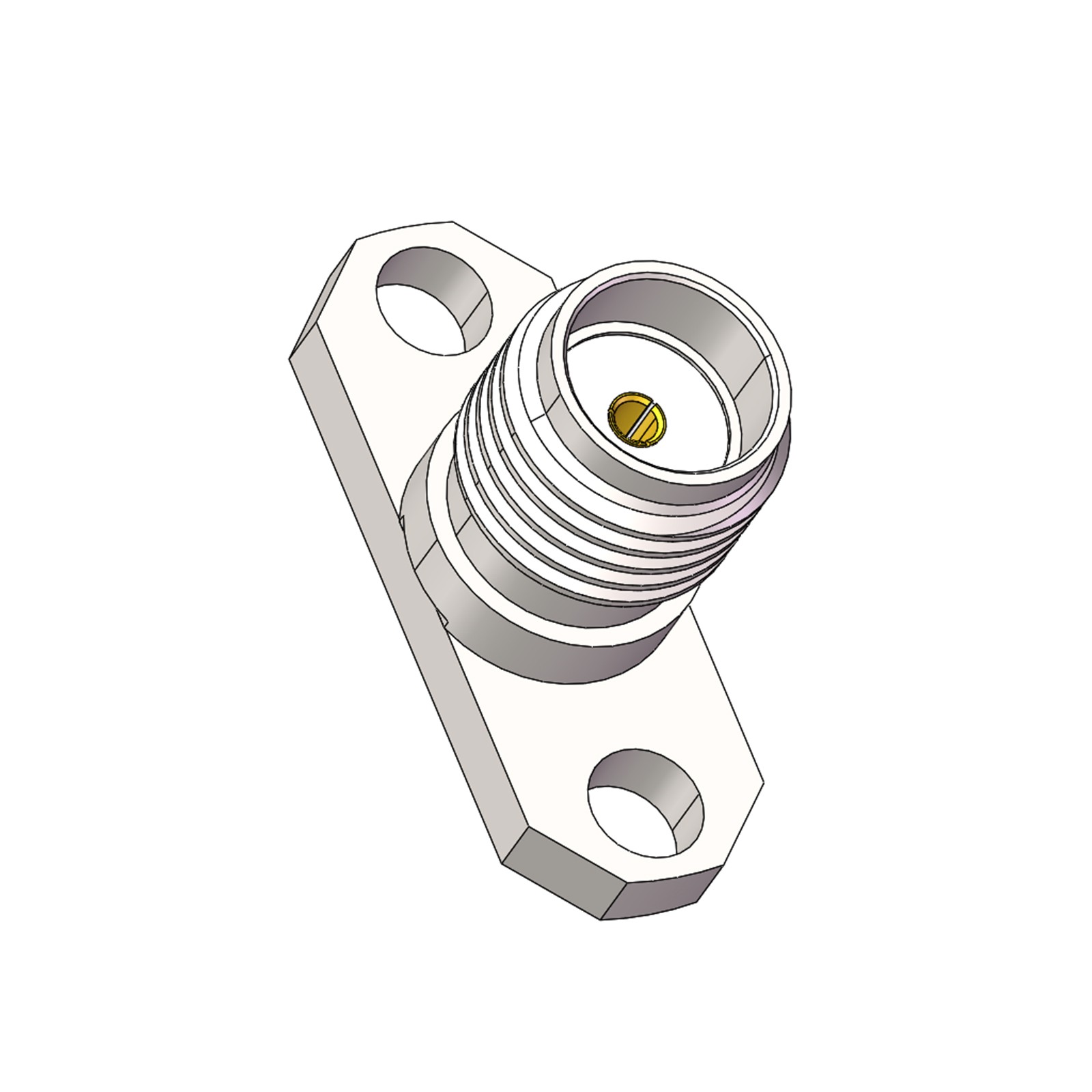

SMA female RF connector , dielectric through-wall connector , Brass（gold plated）/ Stainless steel

• BODY:Brass（Gold plated）/ Stainless steel
• CONTACT:BERYLLIUM COPPER
• INSULATOR:PTFE
• IMPEDANCE:50 OHMS
• FREQUENCY:DC TO 27 GHz
• VSWR:≤1.25
• Temperature range:-55~165℃
•

•
